Guide - Balancing Beads

Balancing beads represent an innovative and dynamic approach to wheel balancing, particularly for trucks, where heavy loads and rugged conditions demand consistent tire performance.

Brands - Only the Best!

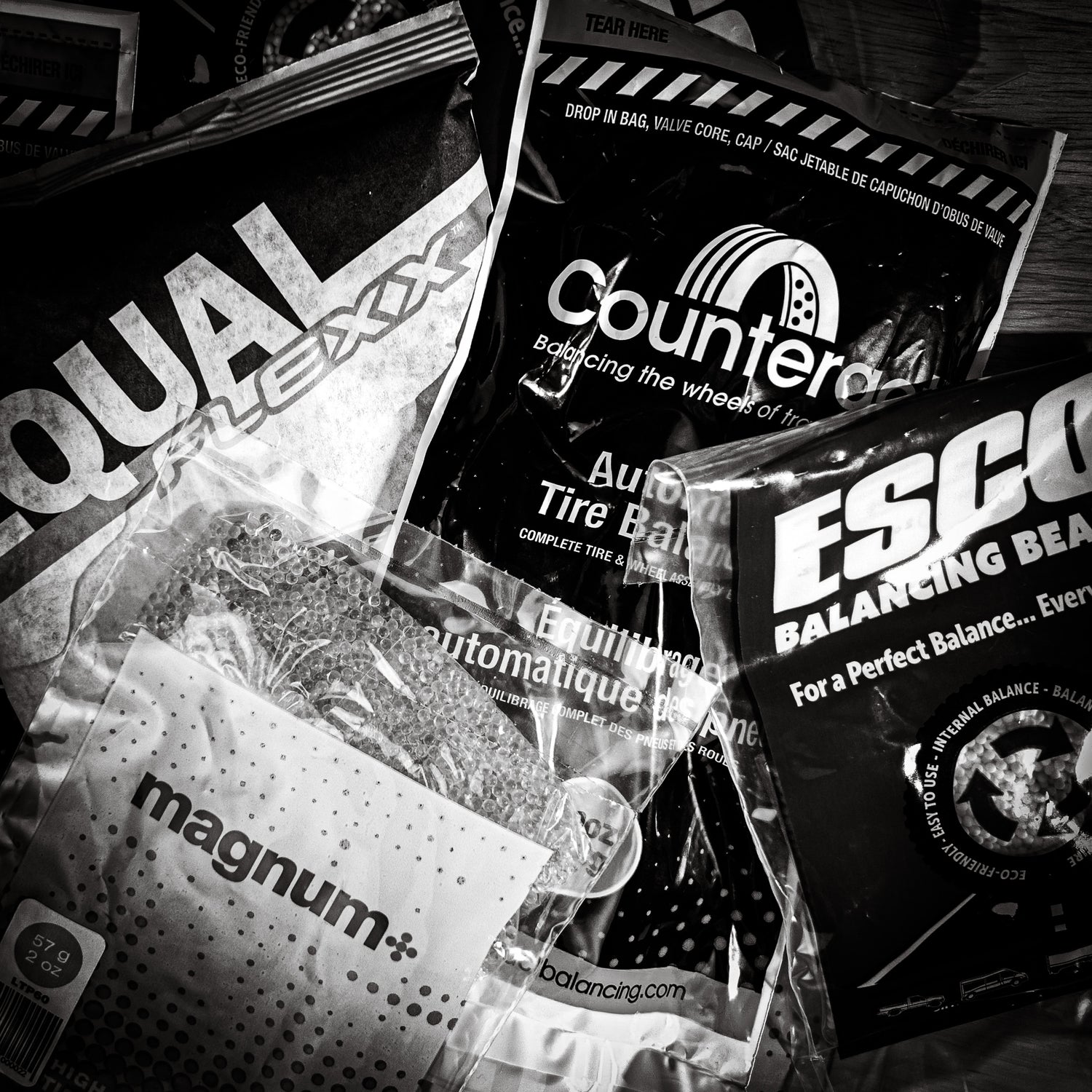

Wheel Weight Warehouse carries the top brands like Equal Flexx, Counteract, Esco, and Magnum+. Look no further than here for your truck tire balancing preference and needs!

Comparison Summary - Equal Flexx / Balancing Beads

  • Best for Fuel Efficiency: Counteract - backed by testing and trucking industry adoption.
  • Best for Affordability: ESCO - cost-effective, especially in bulk for fleets.
  • Best for Simplicity: Magnum+ or ESCO - toss-in bags with no extra tools.
  • Best for Durability: All strong but Counteract and Magnum+ emphasize non-clumping glass.
  • Best for Heavy-Duty Trucks: Counteract and ESCO - widely used in semis & off-road fleets.
  • Best for Unique Tech: Equal Flexx - polymer approach differs from traditional beads.

•

Breakdown - Equal Flexx / Balancing Beads

Equal Flexx:

Material: Proprietary polymer compound (not glass or ceramic), designed to compress and flex.
Installation: Drop-in bags only, no valve stem option. Simple to toss in during tire mounting.
Durability: Lasts tire life but may compress over time, potentially reducing effectiveness in extreme conditions.
Effectiveness: Balances well for truck tires, reduces heat buildup, and improves tread life. Less dynamic than beads in adjusting to rapid changes.
Compatibility: Works with truck tires (e.g., 10-16 oz for heavy-duty), TPMS-safe.
Standout Feature: Claims to reduce tire heat, appealing for heavy loads or hot climates.

Counteract:

Material: Tempered glass spheres (99.9% pure), recyclable and moisture-resistant.
Installation: Offers pre-packaged drop-in bags that dissolve inside the tire or loose beads injectable via the valve stem with an applicator kit. Easy for DIY or shop use.
Durability: Designed to last the tire’s life without breaking down or clumping.
Effectiveness: Proven in SAE and TMC Type II tests to improve fuel economy (up to 2-3%) and reduce vibration. Highly effective for trucks due to dynamic rebalancing as tire wear or load changes occur.
Compatibility: Works with truck tires (e.g., 11R22.5, 11R24.5), TPMS-compatible, and suited for highway and off-road use.
Standout Feature: Claims to be the only brand with documented fuel savings, backed by trucking industry testimonials.

ESCO:

Material: Ceramic beads, eco-friendly and reusable.
Installation: Available in pre-measured bags (e.g., 10 oz for truck tires) or bulk buckets (17.6 lbs) with a scoop for custom amounts. Drop-in bags simplify mounting.
Durability: Resistant to breaking or disintegrating, lasting the tire’s lifespan.
Effectiveness: Automatically adjusts to imbalances via centrifugal force, widely praised for smoothing rides in heavy-duty truck applications (e.g., dump trucks, semis).
Compatibility: Ideal for truck tires (e.g., 425/65R22.5), TPMS-friendly, no special valve cores needed.
Standout Feature: Bulk option appeals to fleet operators; simple, no-fuss design.

Magnum+

Material: Tempered glass beads, free of silica coating, recyclable.
Installation: Pre-measured bags tossed into the tire during mounting; no special tools needed. Thin plastic insert bags disintegrate inside.
Durability: Outlasts tire tread, no breakdown or moisture absorption.
Effectiveness: Reliable for truck and off-road tires, dynamically balances without static balancing required. Good for heavy-ply/bias-ply tires with upsizing.
Compatibility: Broad range, including truck tires; TPMS-compatible, no special valve cores needed.
Standout Feature: Over 25 years on the market, trusted for versatility across tire types.

This self-adjusting mechanism makes balancing beads especially well-suited for trucks, offering a low-maintenance solution that adapts to changing conditions over time. By reducing vibration, improving fuel efficiency, and extending tire life, balancing beads provide a practical and efficient alternative for truck operators seeking enhanced stability and durability on the road.

•

Installation - Balancing Beads

1. Determine the Correct Amount: Check the manufacturer’s guidelines (e.g., from brands like Counteract or Equal) to select the appropriate weight of beads based on the tire size and type. For example, a typical 22.5-inch truck tire might require 6-14 ounces of beads, depending on the load rating and brand specifications.

2. Prepare the Tire and Wheel: Start with a clean, unmounted tire and wheel assembly. Ensure the tire is free of any existing balancing weights (clip-on or adhesive) to avoid interference with the beads’ movement. If reusing a tire, inspect and clean the inner liner to remove debris.

3.Insert the Beads: Pre-Packaged Bags: Many balancing beads come in dissolvable or burstable bags designed to break apart once the tire spins. Simply place the correct bag (matching the required weight) inside the tire before mounting it on the wheel. Loose Beads: Alternatively, if using loose beads, pour the measured amount directly into the tire through the valve stem (after removing the valve core) or into the tire cavity before mounting. A funnel or specialized applicator bottle can make this easier.

4. Mount the Tire: Carefully mount the tire onto the wheel using a tire machine, ensuring the beads remain inside. If loose beads were poured in, take care not to spill them during this step. Secure the tire to the rim as usual, following standard mounting procedures.

5. Install the Valve Core and Inflate: If the beads were added via the valve stem, reattach the valve core once the beads are inside. Inflate the tire to the recommended pressure, typically found on the tire sidewall or in the truck’s manual. The beads will remain static until the tire begins to roll.

6. Test the Balance: After mounting the tire onto the truck, drive the vehicle at a low speed (around 20-40 mph) for a few miles. This allows the beads to distribute evenly inside the tire, settling into place to counterbalance any imperfections. No tire balancing machine is needed, as the beads self-adjust dynamically.

7. Verify Performance: Listen for reduced vibration or check for improved ride quality. If issues persist, ensure the correct bead amount was used and that no other tire damage (e.g., a bent rim) is affecting balance.

•

Tips - Balancing Beads

  • Balancing beads are most effective when installed during initial tire mounting, though they can be added to mounted tires via the valve stem with the right tools.
  • Avoid overfilling, as excess beads can reduce effectiveness or clump together.
  • For best results, use high-quality beads from reputable manufacturers designed specifically for truck tires.
